Apex Swing 150

Apex Swing 150

Apex Swing 150
Aluminium Hinged Door
联系我们 返回产品列表

Apex Swing 150

NON-Thermal Break

Enjoy a wide field ofvision with our Hingeddoors, as the door leavesdo not obstruct the viewwhen opened, creating atransparent indoor space.

产品概述

  • MD150 Single Hinged Door
  • MD150 Double Hinged Door
  • MD150Pivot Door
Pearl White
Pearl White
2721114G
Monument
Monument
2729066M
Black Mall
Black Mall
27219320
Other colours
其他颜色
定制粉末涂层

产品规格

Glass Specifications

Available Glass Build-Up
5mm+12Ar+5mm
6mm+12Ar+6mm
8mm+9Ar+8mm

Glazing

5+12A+5
Visible Trans : 63%
Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k
Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

6+12A+6
Visible Trans : 72%
Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k
Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Glazing

8+12A+8
Visible Trans : 84%
Winter Nighttime U-Value : Winter Nighttime -2.73W/m²k
Summer Daytime U-Value : Summer Daytime – 2.72W/m²k

Hardware

Standard Hardware Reference
KINLONG
Optional Hardware Upgrades
Doric (Only for use without a flyscreen)

Maximum Performance

Water Tightness
+200Pa
Positive Pressure
Maximum pressure: +2.00 kPa
Negative Pressure
Maximum pressure: -2.83 kPa
Air Tightness
Under pressure difference of: +/-75Pa
Air Tightness
Allowed air infiltration rate: 25.945m3/hr

产品亮点

Opening Diagrams

Opening Diagrams

应用场景

适用于各种建筑和项目类型

住宅建筑 商业综合体 办公楼 购物中心 酒店和度假村 别墅与联排住宅 学校与大学 医院与医疗保健

相关产品

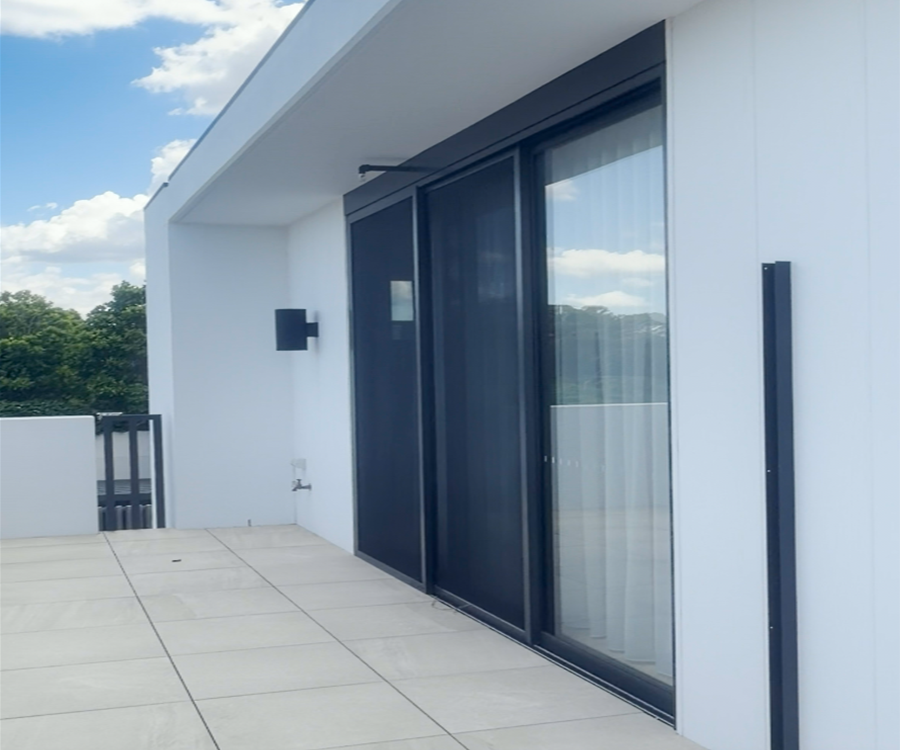

MA100 Sliding Door
