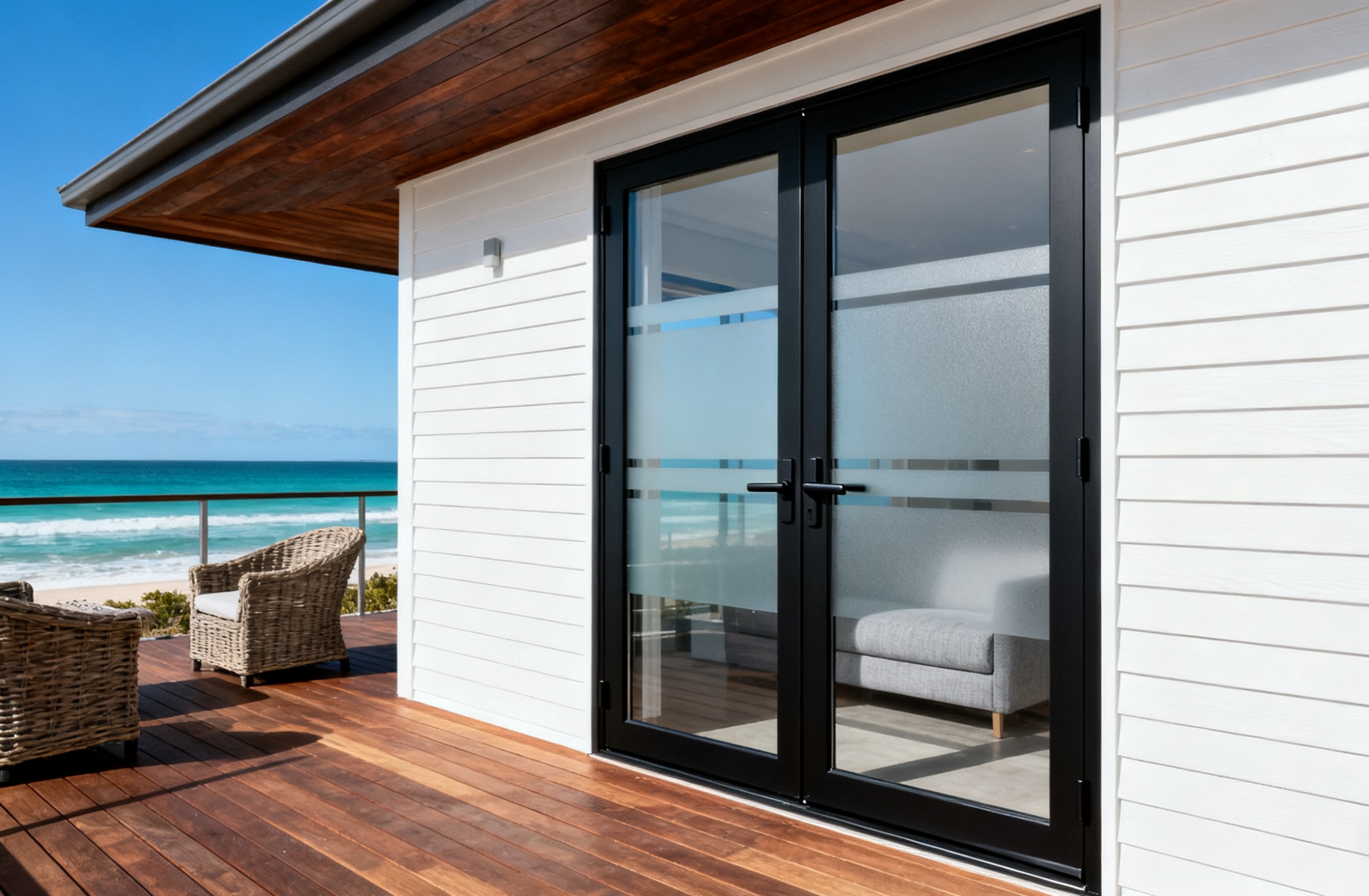

MA100 Hinged Door

MA100 Hinged Door

NON-Thermal Break

Enjoy improvedventilation andbreathability with ourHinged doors, allowing forfull opening to achieveoptimal air circulation,especially beneficial duringthe summer months.

产品概述

Water Tightness : 200Pa
Ultimate Pressure : 2000Pa with no collapse
5+12Ar+5 / 6+12Ar+6 / 8+9Ar+8

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

其他颜色

定制粉末涂层

产品规格

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

6mm+12Ar+6mm

8mm+9Ar+8mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

5+12A+5

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Hardware

Standard Hardware Reference

China Brand Single Chain Winder

Optional Hardware Upgrades

Doric DS1# 27001 Single chain winder

Doric DS94 # 27001 Double chain winder

Maximum Performance

Water Tightness

200Pa

Ultimate Pressure

2000Pa with no collapse

Air Tightness :

Sealed: At +75 Pa: 0.52 L/s·m²

Air Tightness :

Sealed: At -75 Pa: 0.98 L/s·m²

Air Tightness :

Sealed: Overall Area: 6.15 m²

产品亮点

Opening Diagrams

应用场景

适用于各种建筑和项目类型

住宅建筑商业综合体办公楼购物中心酒店和度假村别墅与联排住宅学校与大学医院与医疗保健

MA100 Hinged Door
