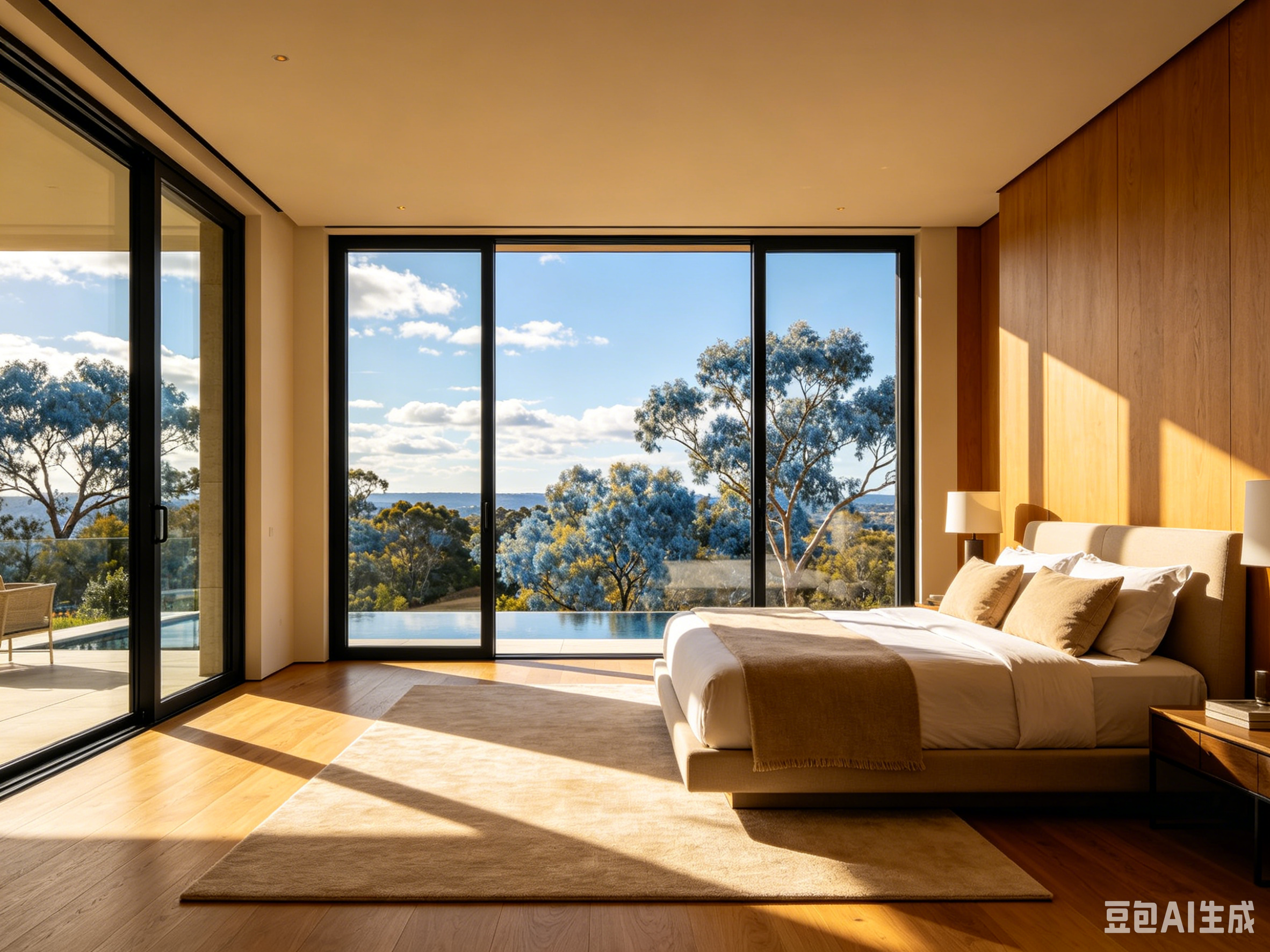

MD150 Sliding Door

MD150 Sliding Door

NON-Thermal Break

Eco-Friendly and Energy-Efficient: Enjoy a well-sealed environment thatkeeps outdoor air out,reducing energyconsumption.

产品概述

MD100（2 Tracks，without flyscreen）
MD150（3 Tracks，with flyscreen）
MD205（4 Tracks，without flyscreen）
MD225（5 Tracks，with flyscreen）

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

其他颜色

定制粉末涂层

产品规格

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

Available Glass Build-Up

6mm+12Ar+6mm

Available Glass Build-Up

8mm+9Ar+8mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

6+12A+6

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Hardware

Standard Hardware Reference

China brand D lock

Optional Hardware Upgrades

Doric D lock DS2130

Doric D lock DS3130

China brand double hook lock+300 handle

Maximum Performance

Water Tightness

450Pa

Ultimate Pressure

Positive : 3000Pa / Negative : 3000Pa

Air Tightness

Positive – 75Pa – 46.46Ls⁻¹

Air Tightness

Negative – 75Pa – 52.16Ls⁻¹

产品亮点

Opening Diagrams

应用场景

适用于各种建筑和项目类型

住宅建筑商业综合体办公楼购物中心酒店和度假村别墅与联排住宅学校与大学医院与医疗保健

MD150 Sliding Door
